YPSP-0006 Spark Plug AUD:101 905 631 G;AUD:06H 905 611;AUD:06H 905 601 A;AUD:101 905 611 G;AUD:06H 905 604;AUD:101 905 631 H;BOSCH:0242245576;BPR:BOC1093001013;OPE:32017047;POR:958 170 221 90;

MODEL SEARCH

CATALOG

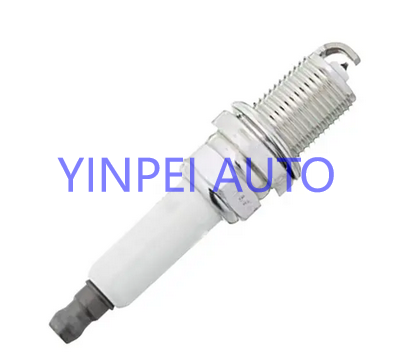

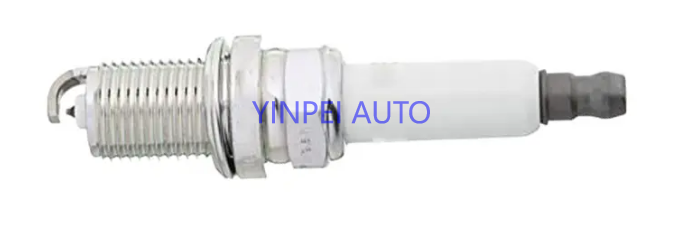

Part Information

TYPE: Spark Plug

PART NO: YPSP-0006

ATTRIBUTES:   Length（No Paking）: 76.1 mm
Width（No Paking）: 19 mm
Thread: M 14 x 1.25
 (ft.lbs): 21 FT. LBS
Connect Type: DIN/SAE top, non-removable
Tightening torque: 28 Nm
Ground Electrode: 1
Seal: flat deformable
Center electrode diameter: 0.8 mm
Electrode spacing: 0.7 mm
Interference/Ablation Suppression: 6 kOhm
spark position: 4 mm
ThreadLength: 19 mm
Wrench opening: 16 mm

OEM Number

AUD 101 905 631 G

AUD 06H 905 611

AUD 06H 905 601 A

AUD 101 905 611 G

AUD 06H 905 604

AUD 101 905 631 H

BOSCH 0242245576

BPR BOC1093001013

OPE 32017047

POR 958 170 221 90

SEA 06H 905 611

SEA 06H 905 601 A

SEA 101 905 631 H

SKO 06H 905 601 A

SKO 101 905 631 H

SKO 06H 905 604

SKO 06H 905 611

VWW 101 905 631 G

VWW 101 905 611 G

VWW 101 905 631 H

VWW 06H 905 604

VWW 07L 905 611

VWW 06H 905 611

VWW 06H 905 601 A

APPLICATION

Similar Products

YPSP-0001

Length（No Paking）: 83.7 mm Width（No Paking）: 19 mm Thread: M 14 x 1.25 (ft.lbs): 21 FT. LBS Connect Type: goblet Tightening torque: 28 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 0.8 mm Electrode spacing: 0.7 mm Interference/Ablation Suppression: 1 kOhm spark position: 4 mm Thread Length: 26.5 mm Wrench opening: 16 mm

YPSP-0002

Length（No Paking）: 75.7 mm Width（No Paking）: 19 mm Thread: M 14 x 1.25 (ft.lbs): 21 FT. LBS Connect Type: DIN/SAE top, non-removable Tightening torque: 28 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 0.8 mm Electrode spacing: 1 mm Interference/Ablation Suppression: 6 kOhm spark position: 3 mm ThreadLength: 19 mm Wrench opening: 16 mm

YPSP-0003

Length（No Paking）: 82 mm Width（No Paking）: 19 mm Thread: M 14 x 1.25 (ft.lbs): 21 FT. LBS Connect Type: DIN/SAE top, non-removable Tightening torque: 28 Nm Ground Electrode: 4 Seal: flat deformable Center electrode diameter: 2.7 mm Electrode spacing: 1.6 mm Interference/Ablation Suppression: 6 kOhm spark position: 5 mm ThreadLength: 26.5 mm Wrench opening: 16 mm

YPSP-0004

Length（No Paking）: 83.7 mm Width（No Paking）: 19 mm Thread: M 14 x 1.25 (ft.lbs): 21 FT. LBS Connect Type: goblet Tightening torque: 28 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 0.8 mm Electrode spacing: 0.7 mm Interference/Ablation Suppression: 6 kOhm spark position: 4 mm ThreadLength: 26.5 mm Wrench opening: 16 mm

YPSP-0005

Thread: M 12 x 1.25 (ft.lbs): 17 FT. LBS Connect Type: goblet Tightening torque: 23 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 2 mm Electrode spacing: 0.8 mm Interference/Ablation Suppression: 2 kOhm spark position: 6 mm ThreadLength: 22 mm Wrench opening: 16 mm

YPSP-0007

Thread: M 14 x 1.25 (ft.lbs): 22 FT. LBS Connect Type: DIN/SAE nut, unscrewable Tightening torque: 30 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 2.6 mm Electrode spacing: 0.8 mm Interference/Ablation Suppression: 6 kOhm spark position: 3 mm ThreadLength: 19 mm Wrench opening: 16 mm

YPSP-0008

Thread: M 14 x 1.25 (ft.lbs): 22 FT. LBS Connect Type: DIN/SAE nut, unscrewable Tightening torque: 30 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 2.6 mm Electrode spacing: 1 mm Interference/Ablation Suppression: 6 kOhm spark position: 3 mm ThreadLength: 19 mm Wrench opening: 20.8 mm

YPSP-0009

YPSP-0010

Length（No Paking）: 75.5 mm Width（No Paking）: 19 mm Thread: M 14 x 1.25 (ft.lbs): 21 FT. LBS Connect Type: DIN/SAE nut, unscrewable Tightening torque: 28 Nm Ground Electrode: 3 Seal: flat deformable Center electrode diameter: 2.6 mm Electrode spacing: 1 mm Interference/Ablation Suppression: 1 kOhm spark position: 6 mm ThreadLength: 19 mm Wrench opening: 16 mm

YPSP-0011

Length（No Paking）: 83.45 mm Width（No Paking）: 18.1 mm Thread: M 12 x 1.25 (ft.lbs): 17 FT. LBS Connect Type: DIN/SAE top, non-removable Tightening torque: 23 Nm Ground Electrode: 1 Seal: flat deformable Center electrode diameter: 0.6 mm Electrode spacing: 0.8 mm Interference/Ablation Suppression: 6 kOhm spark position: 4 mm ThreadLength: 26.5 mm Wrench opening: 16 mm
